Allegro Packet

Allegro Packets Network Multimeter

Why ? Allegro Packets

Allegro Packets 특장점

  • 장점 01

    In-Memory Database를
    통한 빠른 Analysis

  • 장점 02

    Plug & Play easy installation/
    easy configuration/ easy Connect

  • 장점 03

    휴대용/가상화/대용량 네트워크 분석기
    Platform (1Gbps~200Gbps)

  • 장점 04

    수집/분석/패킷 저장 (All-in-One)
    동시에 한 장비에서 지원

  • 장점 05

    실시간과 Back in time를 통한 빠른
    Analysis & Troubleshooting

  • 장점 06

    Websharks를 통한 즉시 패킷 분석

  • 장점 07

    멀티 Allegro를 통한 구간 분석/응답시간 분석

  • 장점 08

    사전 / 사후 필터를 통한 인시던트 및 보고서 제공

  • 장점 09

    실시간 Wiki 매뉴얼 제공

  • 장점 10

    위젯 형식의 Dashboard 제공

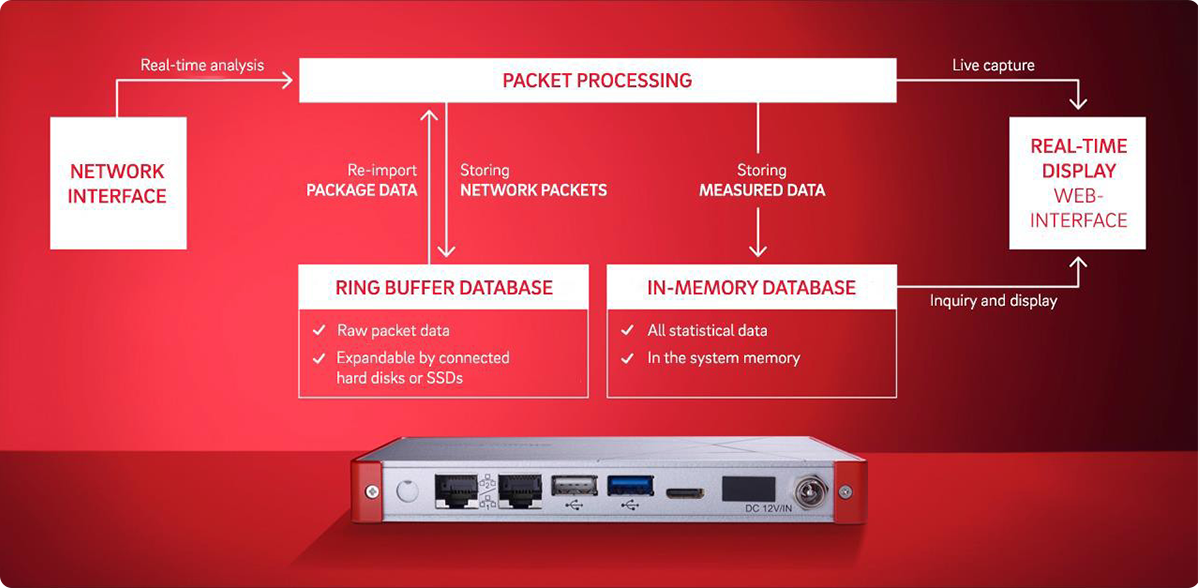

Allegro Packets Architecture

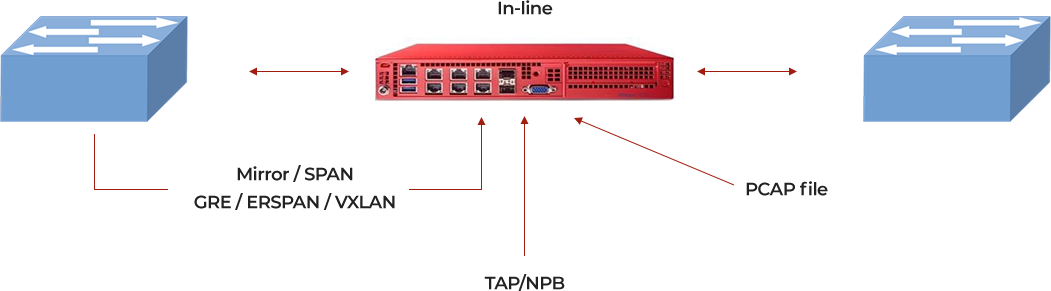

Allegro Packets 구성 방식

Allegro Packets Line UP(Portable)
Appliance Virtual Edition Allegro 200 Allegro 500 Allegro 1000/1200 Allegro 3000/3200 Allegro 3500/5500
Monitor ports 1x virtual mirror port 2x1000Base-T 4x1000Base-T 3x1000Base-T
2x10GBase-T
2xSFP+
1extension slot		 3x1000Base-T
2x10GBase-T
2xSFP+
1extension slot		 5extension slots:
SFP+,QSFP,
QSFP28 etc.
Maximum throughput About 1 GBit/s
(CPU dependent)		 2GBit/s 4GBit/s 20GBit/s 40GBit/s 50-100GBit/s
Internal database memory Unlimited 2GB 4/8GB 16-256GB 64-256GB 96-1536GB
Integrated ring buffer Unlimited - 0.5-1TB Up to 10 TB Up to 10 TB Up to 360 TB
Wersions Virual Portable Portable Portable / 1U Portable / 1U 4U
Weight - 260g 1kg 2-4kg 2-4kg 40-80kg
Packaging - Portable soft
shell case		 Portable soft
shell case		 Portable soft shell
case/server cardboard		 Portable soft shell
case/server cardboard		 Server cardboard

Allegro Packets Line UP(Data Cenetr용)
Allegro 800 1200 3200 x310 Series
 x410 Series x510 Series
Max capture performance 4GBit/s 20 GBit/s 40 GBit/s 240 GBit/s 240 GBit/s 200 GBit/s
Avg Throughput
(full decode)
 2 GBit/s
 10 GBit/s 10 GBit/s
 120GBit/s 120 GBit/s 120GBit/s
Installed  ports 8 x 1 G
2 x SFP
1 x Wifi 6e
 3 x 1G
2 x 10G
2 x SFP+
1 x Wifi 6e
 3 x 1G
2 x 10G
2 x SFP+
1 x Wifi 6e
 2 x SFP+
1 x Wifi 6e
 2 x SFP+
1 x Wifi 6e
 No default ports
1 x Wifi 6e
NIC slots - 1 1 2+1 OCP 6+1 OCP 4
In-memory  DB storage 16 – 128 GB 16 – 512 GB 64 – 512 GB 192-6144 GB 192-6144 GB 192-3072 GB
Built-in packet ring buffer 960 GB – 3,84 TB Optional up to
51,2 TB		 Optional up to
51,2 TB		 configurable with external HDD/SSDs
(limited by max # SSDs x largest SSD available)
